Chamberlain Garage Door Opener Repair Guide (Charlotte, NC)
Chamberlain and LiftMaster come from the same parent company, share the Security+ 2.0 rolling code system, and run on the same myQ platform — so a lot of what you read about one applies to the other. The differences that matter in the field are model-line differences: Chamberlain is the retail line, typically with lighter-duty gearing and retail warranty handling, while LiftMaster is the dealer line.
TL;DR
Read the blink code on the motor head first — one to four blinks are sensor or wiring faults you can usually fix yourself; five or six mean motor or board service. myQ connection failures are almost always a 5 GHz Wi-Fi issue. Doors that stop short or reverse before sealing usually need travel and force limits reset. Repairs run $95–$350; replacement runs $450–$850 installed.
Common Chamberlain failures
- myQ connectivity. Built-in Wi-Fi and myQ hubs only join 2.4 GHz networks. Combined-band network names, WPA3-only security, mesh client isolation, and weak ceiling signal are the four causes we see most.

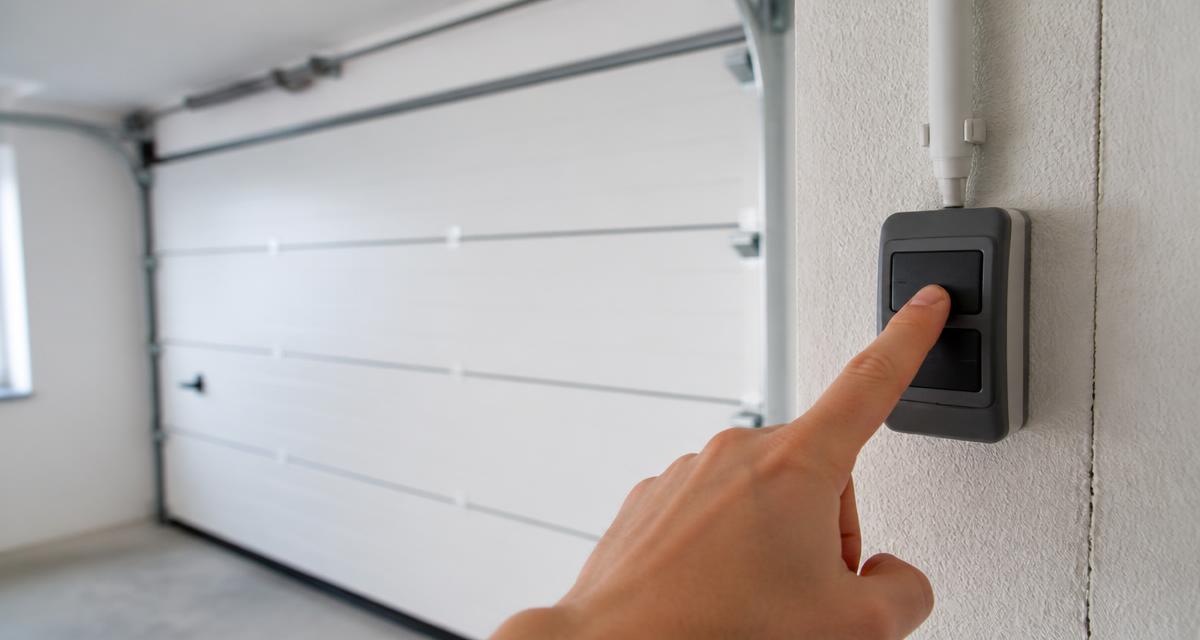

- Wall control panel errors. The multi-function console runs on low-voltage bell wire that gets pinched by staples or chewed by rodents. Symptoms: three blinks, a dead console with working remotes, or the door running on its own.
- Travel and limit switch drift. Seasonal humidity changes door friction, and the learned open/close positions drift with it. The door then stops short, reverses before sealing, or slams the last few inches.
- Photo-eye faults. Same sensor architecture as LiftMaster: a bumped bracket, a dirty lens, or direct afternoon sun on the receiver.
- Gear wear. Retail-line gearing on a heavy or poorly balanced door reaches failure earlier. Motor runs, door doesn't move, grinding noise.
Chamberlain error light patterns
| Code | Likely cause | What to do |
|---|---|---|
| 1 blink | Sensor wires open, shorted, or reversed | Yes — recheck both sensor terminals |
| 2 blinks | Sensor wire shorted or broken | Yes — inspect for staple pinches |
| 3 blinks | Wall control wire shorted | Yes — disconnect the console and test |
| 4 blinks | Sensors misaligned or blocked | Yes — clean lenses and realign |
| 5 blinks | RPM sensor or motor fault | No — motor head service |
| 6 blinks | Logic board failure | No — board replacement |
Chamberlain repair cost table
| Repair | Typical installed cost |
|---|---|
| Safety sensor realignment / replacement | $95 – $175 |
| Travel & force limit recalibration | $95 – $150 |
| Wall console or wiring repair | $110 – $200 |
| myQ setup / connectivity troubleshooting | $75 – $140 |
| Gear & sprocket kit | $150 – $275 |
| Logic board replacement | $200 – $350 |
| Full Chamberlain unit replacement (installed) | $450 – $850 |
Charlotte-metro residential ranges; we quote flat-rate in writing before starting. Full list on the pricing page.
myQ app setup & troubleshooting
- Confirm the opener supports myQ. Look for a yellow Learn button and a Wi-Fi indicator, or add a myQ hub to an older Security+ 2.0 unit.
- Put your phone on 2.4 GHz. If your router broadcasts one combined name, temporarily split the bands or use a 2.4 GHz guest network for setup.
- Press the Wi-Fi / Learn setup button on the motor head until the Wi-Fi LED blinks blue, then follow the in-app pairing.
- If it fails, check security settings. WPA2 or WPA2/WPA3 mixed mode works; WPA3-only frequently does not. Turn off client isolation on mesh systems.
- Weak signal at the ceiling? Test with your phone standing on a ladder next to the motor. If it's marginal, a mesh node in the garage solves it permanently.
- Still failing? Factory-reset the Wi-Fi module (hold the setup button until the LED cycles), remove the device from the app, and re-add it fresh.
Once connected, myQ gives you remote open/close, door-left-open alerts, timed auto-close, and shared guest access — the features most homeowners upgrade for.
Frequently asked questions
Is Chamberlain the same as LiftMaster?
They come from the same parent company and share a great deal of engineering, including the Security+ 2.0 rolling code system, the myQ platform, and many rail and remote accessories. The practical difference is the channel: LiftMaster is the professional dealer line with heavier-duty components and dealer-serviced warranties, while Chamberlain is the retail line sold in home centers. Logic boards and warranty coverage are not interchangeable between them.
Why won't my Chamberlain myQ connect to Wi-Fi?
The most common cause is a 5 GHz network. myQ hubs and built-in Wi-Fi openers only join 2.4 GHz networks, so a combined-band network name often fails during setup. Temporarily separate the bands or use a 2.4 GHz guest network. Other frequent causes are a weak signal at the ceiling, WPA3-only security, and a captive-portal or client-isolation setting on a mesh router.
What do Chamberlain opener error lights mean?
Count the blinks on the LED beside the Learn button. One blink means the safety sensor wires are open, shorted, or reversed. Two blinks means a shorted or broken sensor wire. Three blinks means a shorted wall-control wire. Four blinks means the sensors are misaligned or obstructed. Five blinks indicates an RPM or motor fault, and six blinks indicates a logic board failure.
Why does my Chamberlain door stop partway or reverse?
Travel and force limits drift over time, especially as weather changes the door's friction. If the door reverses before it seals or stops short opening, the travel limits need resetting. If it reverses immediately on closing, start with the photo-eye sensors. If it strains and stops within a foot of opening, suspect a broken spring, not the opener.
How much does Chamberlain opener repair cost in Charlotte?
Sensor service typically runs $95–$175, wall console or wiring repair $110–$200, travel and force limit recalibration $95–$150, a gear and sprocket kit $150–$275, a logic board $200–$350, and myQ setup or troubleshooting $75–$140. A full replacement unit runs roughly $450–$850 installed.
Can I use LiftMaster parts on a Chamberlain opener?
Remotes, keypads, and photo-eye sensors are frequently cross-compatible when the Learn button color and security generation match. Logic boards, gear kits, and motor assemblies are model-specific and should be matched to your exact model number, which is on the sticker inside the motor cover or on the end panel.
How long do Chamberlain openers last?
About 10–15 years of typical residential use. Retail-line units generally use lighter-duty gears than the LiftMaster dealer line, so on a heavy or poorly balanced door they tend to reach gear failure earlier. Keeping the door's springs correctly sized and the hardware lubricated is what actually extends opener life.
